Description
DSI TAD Miniscrew is used as a solution for non-surgical teeth straightening teeth and alignment of moderate and severe malocclusions. TAD (Temporary Anchorage Devices) is a great alternative for using a facebow and headgear to correct severe malocclusion or non-erupted teeth cases. Also, it eliminates the need for any patient's compliance which in turn reduces the overall treatment time.
By using the TAD as a skeletal anchorage, it can facilitate tooth movement. The main advantage is the ease of installation and minimal trauma. The device is inserted directly into the jawbone without any drilling. Then, elastic or spring traction is used to pull the teeth towards it.
The Zygomatic TAD Screws are made to reduce any potential soft tissue irritation. The half-smooth, half-thread body design alleviates trauma, inflammation, and patient discomfort.
The most practical placing of the DSI Zygomatic Screws is in the anterior to the anatomic ridge and buccal to the mesiobuccal root of the maxillary first molar. It supports retracing the entire lower arch to conservatively correct Class III malocclusions without tooth extraction or orthognathic surgery.

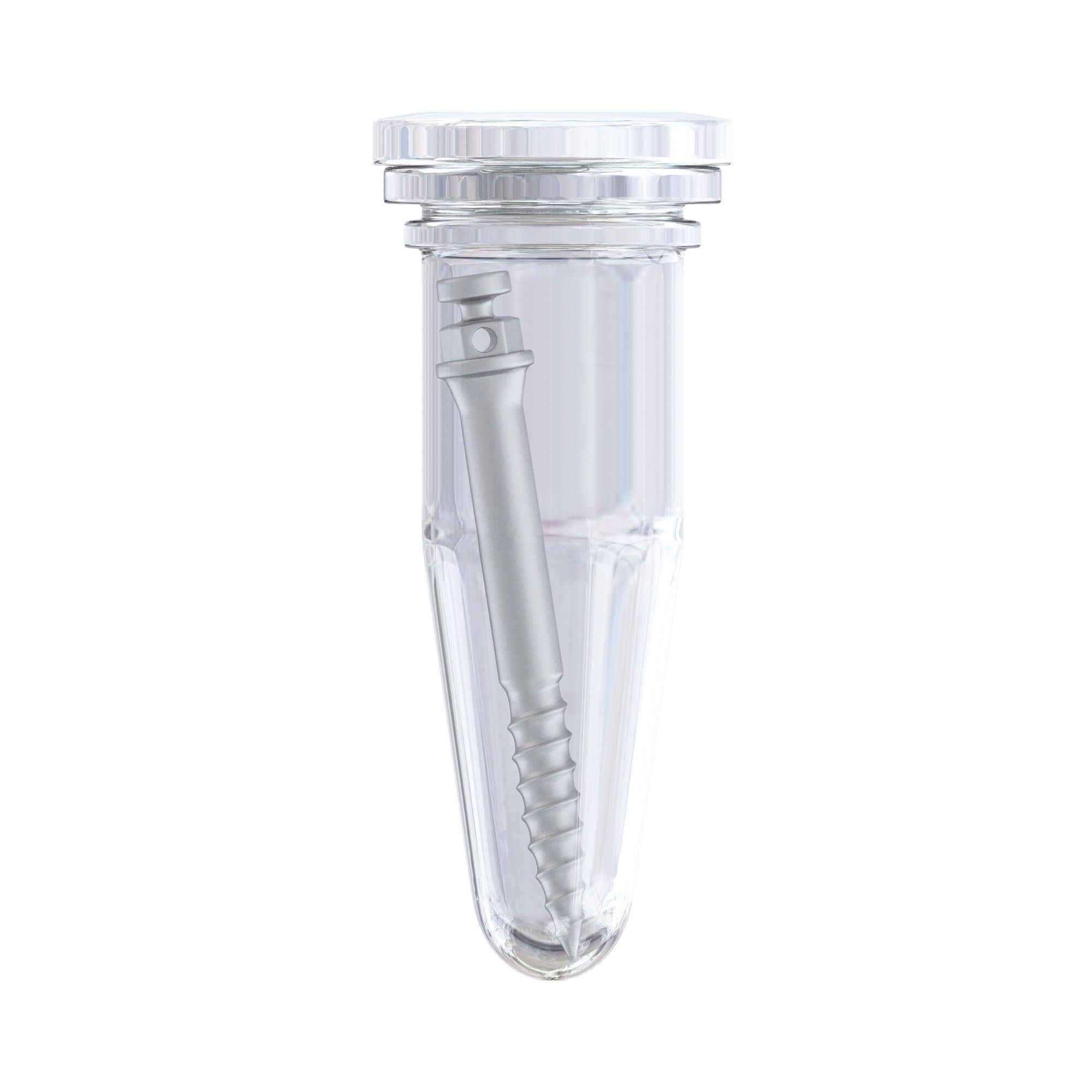

Each DSI Miniscrew comes in a sterile double blister package and is ready for immediate usage.
Features

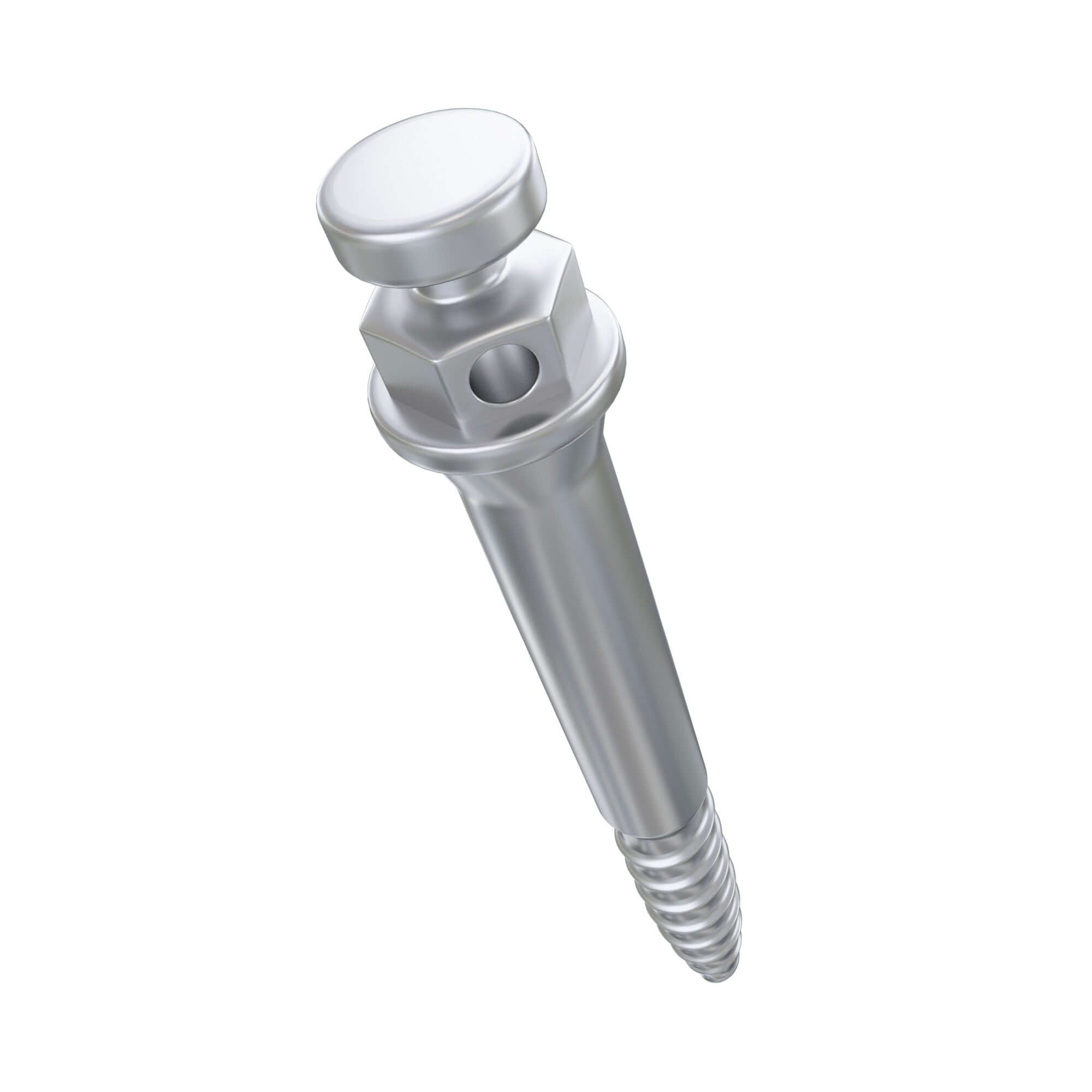

- Mushroom-shape head for ease of ligation by closed-coil or elastic chain
- Hexagonal base of the head for a tight and secure grip inside the tool.
- Self-taping: Fast and effective insertion, both manually or by contra-angle.
- Half-smooth, half-thread body design with a transmucosal part of 8mm for better soft-tissue adaptation.
- 0.8mm hole (suitable for wire up to .020 "x.022") in a hex, for application of orthodontic accessories.
- Titanium alloy Ti-6Al-4V grade 23 ELI, is biocompatible and strong and can last for the whole treatment.
Indications
- Teeth straightening and alignment of malocclusion cases
- Correct of Class III malocclusions without tooth extraction or orthognathic surgery.
- Insertion into the retromolar area of the lower jaw or alveolar crest formation to create skeletal anchorage.
- Corrects misaligned teeth.
- Molar protraction, uprighting, and distalization
- Indirect anchorage for space closure
- Intrusion of non-erupted tooth, and anterior open bite
- Anterior teeth retraction
- Traction on impacted canine
Benefits
- Non-surgical teeth alignment
- Ideal for severe cases of malocclusion when traditional methods are ineffective
- Alleviates trauma, inflammation, and patient discomfort.
- Direct bone contact for "absolute anchorage," preventing movement
- Time-saving Installation
- Efficient teeth alignment and strengthening
- Versatile and Compact
- Easy insertion and removal, with a driver, no need for drills or other surgical instruments
- Strong and Biocompatible
- There is no need for patient compliance
- Can be used immediately out of the box
Technical Information:
- Diameter: 2.0mm
- Total length: 17mm
- Transmucosal length: 8mm
- Thread length: 9mm
- Upper hex connection 2.2mm
