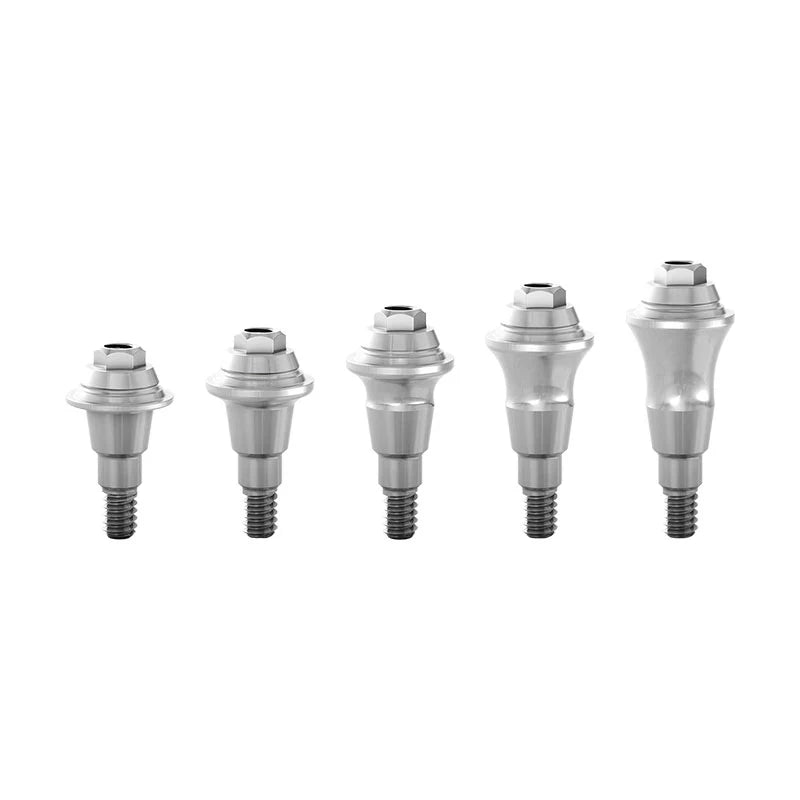

The Straight Multi-Unit Abutments Ø 4.8 mm Compatible with GM Mini Conical are designed for screw-retained, multiple-unit restorations within the Neodent® Grand Morse™ implant system.
We offer high-precision components, fully compatible with Neodent® systems, developed in accordance with the requirements of modern digital dentistry and corresponding to all Neodent® standard workflows and digital libraries.
Manufactured from high-quality titanium, these straight multi-unit abutments deliver excellent mechanical strength, long-term stability, and reliable biocompatibility. The GrandMorse® mini conical connection ensures a secure implant–abutment interface, supporting prosthetic accuracy and durability in bridge and full-arch restorations.
The abutments are available in five gingival height options (0.8 mm, 1.5 mm, 2.5 mm, 3.5 mm, and 4.5 mm), enabling precise adaptation to different soft-tissue conditions and optimal emergence profile control.
Specifications:
-
Compatible with: GM Mini Conical (Neodent® GM)
-
Available Gingiva Heights: 0.8 mm, 1.5 mm, 2.5 mm, 3.5 mm, 4.5 mm
-
Angulation: 0° (Straight)
-
Restoration: Bridge
-
Abutment Diameter: Ø 4.8 mm
-
Connection Name (Abbreviation): GM Mini
-
Screw Driver: Abutment Driver
-
Implant Line: Neodent® GM
-
Fixation: Screw-retained
-
Implant or Abutment Level: Abutment Level
-
Final or Temporary: Final
-
Indexed: No
-
Indication: Multiple-unit restorations
-
Material: Titanium
Material:
- Titanium alloy Ti-6Al-4V grade 23 ELI
Indications:
- Straight Multi-Unit Abutments Ø 4.8 mm Compatible with GM Mini Conical
Platform:
Multi-Unit abutments Ø4.8 mm
Units in a box:
1
